Hydrogen Refuelling Station

Home Projects We Work

Hydrogen Refuelling Station

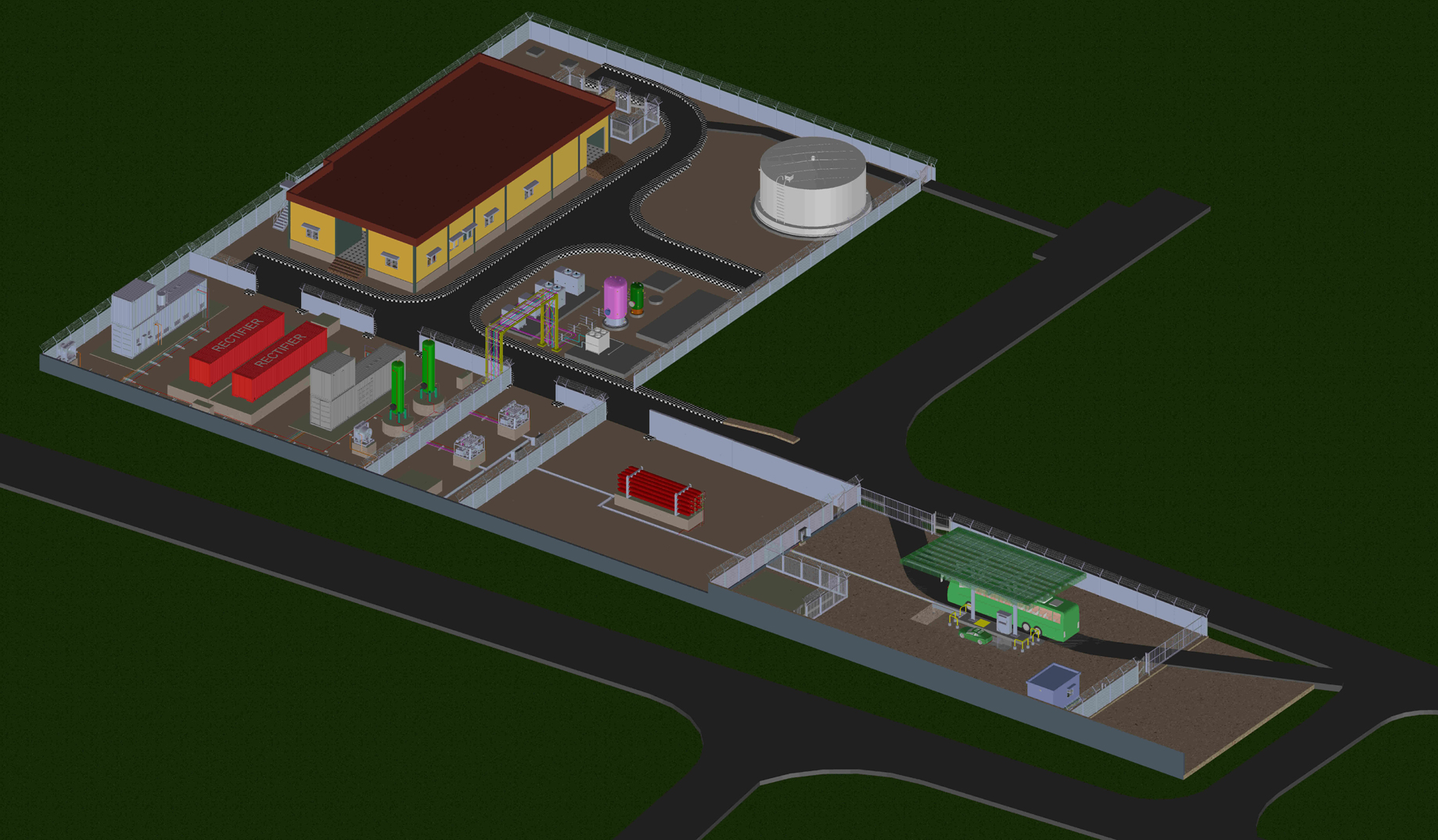

Hydrogen Refuelling Station is developed as per the requirements of Petroleum Explosive and safety Organization (PESO) in India. The hydrogen refueling station includes an onsite hydrogen generation system with a capacity of 260 kg/day. The hydrogen is compressed to 500 bar and stored in a cascade cylinder system. The station operates for 10 hours per day, supplying hydrogen to run 5 hydrogen fuel cell buses

Features
  • Onsite Hydrogen Generation
  • Fuelling of 5 buses @ 50 kg
Applications
  • H2 fuel stations are widely used for providing fuel for Hydrogen Fuel Cell Vehicles
Type H2 Refuelling Station
Design Code ISO 19880, NFPA 2, ISO 22734
H2 Generation Technology Alkaline Electrolyser
Capacity 2X147 NM3
Compressor Four Stage Hydraulic Compressor
Storage cascade Cyclinder
Dispenser H35@5 Buses
